When a PCB project moves from a schematic and layout into manufacturing, soldering is one of the first decisions that affects both quality and production cost.

Many teams initially think the choice is simple: use hand soldering for prototypes and automated soldering for volume production. In reality, the decision is more complicated. Component types, board design, thermal requirements, inspection capability, and expected production volume all influence which process is the better fit.

A board with a few connectors and through-hole components may benefit from manual soldering during early development. Another board with hundreds of SMT components, fine-pitch packages, or hidden solder joints may require a fully controlled automated process even at the prototype stage.

The goal is not to choose the more advanced method. The goal is to choose a soldering process that provides enough control, repeatability, and inspection confidence for the actual application.

The Difference Between Hand Soldering and Automated Soldering

Hand soldering and automated soldering solve different manufacturing problems.

Hand soldering depends heavily on operator skill, work instructions, and direct access to the solder joint. It provides flexibility, which makes it useful for prototypes, engineering changes, repairs, and low-volume builds.

Automated soldering relies on equipment settings, programs, fixtures, thermal profiles, and process monitoring. Instead of depending mainly on individual technique, it creates a repeatable production environment that can support larger quantities and tighter process control.

Neither method is automatically better. The correct choice depends on what the PCB needs.

For example, a prototype may require several design changes within a short period. In this case, a manual process can reduce turnaround time because engineers can modify and assemble boards quickly. However, once the same board enters stable production, repeating the same operations manually may introduce unnecessary variation.

This is where manufacturing experience becomes important. A professional PCB assembly service does not simply select manual or automated soldering based on order quantity. The decision should consider component mix, reliability requirements, inspection method, and future production plans.

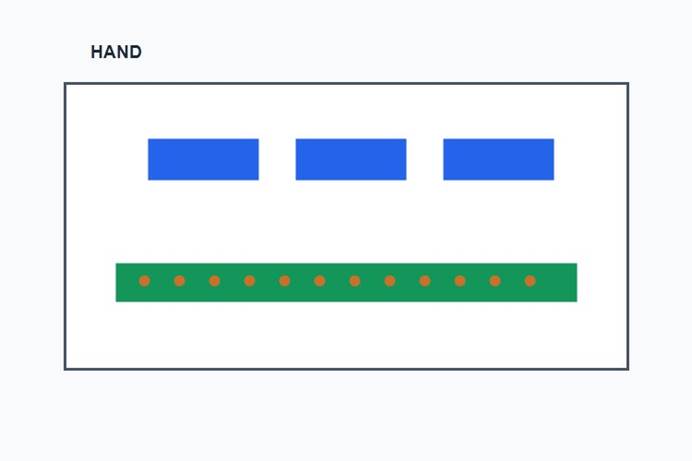

When Hand Soldering Is the Better Choice

Hand soldering remains an important part of modern PCB manufacturing. It is not only used for repairs or outdated production methods. In many situations, it is the most practical solution.

Typical applications include:

• Prototype builds before production design is finalized
• Engineering samples with frequent modifications
• Low-volume products with limited demand
• Special components that cannot easily pass through automated equipment
• Rework after inspection or testing

The main advantage of hand soldering is flexibility. Engineers can quickly replace components, modify circuits, or assemble small quantities without investing in additional tooling.

However, flexibility comes with responsibility. A reliable hand-soldering process still requires clear standards.

Important control factors include:

• Correct solder alloy and flux selection
• Proper soldering temperature
• Suitable soldering tip size
• Operator training
• Inspection criteria
• Rework documentation

A common misunderstanding is that manual soldering does not require process control because it is performed by a technician. In reality, inconsistent temperature, excessive heating time, or poor solder technique can create defects that are difficult to detect later.

For example, a connector soldered manually may look acceptable from the outside but have insufficient wetting on the pin connection. Without proper inspection, the issue may only appear after the product enters field operation.

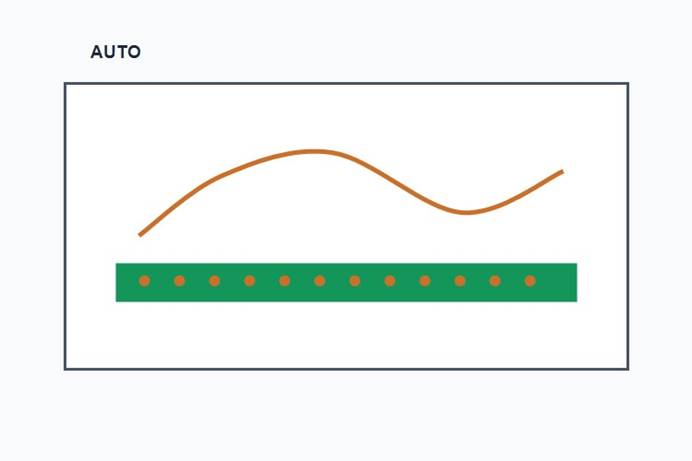

When Automated Soldering Becomes the Better Option

Automated soldering becomes more valuable when repeatability becomes a priority.

For SMT automated production processes such as reflow soldering allow hundreds or thousands of solder joints to be created under the same thermal conditions. This consistency is difficult to achieve through manual work, especially when dealing with fine-pitch components, small passive devices, or high-density layouts.

Automated soldering is commonly preferred when a project requires:

• Repeat production runs
• High component density
• Consistent solder quality
• Detailed production records
• Reduced operator variation

However, automation does not remove all manufacturing risks.

A poorly designed PCB can still create soldering problems even with advanced equipment. Examples include:

• Uneven copper distribution causing thermal imbalance
• Incorrect pad design
• Insufficient component spacing
• Poor access for inspection
• Improper panel arrangement

A common production mistake is assuming that an automated machine can solve every assembly challenge. In practice, manufacturing quality starts much earlier, during PCB design and process planning.

PCB Design Often Determines the Soldering Method

One of the most overlooked points in soldering decisions is that the manufacturing process is often influenced by PCB design choices made months earlier.

The assembler does not start with a blank board. The available soldering options are already affected by component selection, footprint design, pad geometry, copper distribution, and mechanical layout.

For example, a connector may look simple from a schematic perspective, but its physical location can determine whether automated soldering is practical. A large connector near sensitive SMT components may require additional masking, selective soldering, or manual operations.

Other design factors that influence soldering include:

• Component spacing and accessibility
• Through-hole lead design
• Pad dimensions
• Solder mask definition
• Thermal balance between copper areas
• Panel orientation
• Inspection access

A design that works electrically may still create manufacturing difficulties.

This is why assembly considerations should be reviewed before releasing production files. The best time to identify a soldering challenge is during design review, not after the first production build shows defects.

If a project requires both automated and manual soldering operations, the assembly sequence should be clearly defined. For example, some through-hole connectors may need to be installed after SMT reflow, while specific components may require controlled hand soldering to avoid thermal stress.

A clear manufacturing plan reduces uncertainty and prevents production teams from making assumptions after the order has already started.

Inspection Should Match the Actual Failure Risk

Inspection is often discussed as a separate step after soldering, but it is actually part of the soldering process decision.

Different solder joints require different inspection methods.

A visible through-hole joint can usually be checked visually or through AOI. A hidden BGA connection requires X-ray inspection. A connector failure may only appear during functional testing.

Using the same inspection method for every solder joint does not provide reliable quality control.

Common inspection and testing methods include:

• Automated Optical Inspection (AOI)
• X-ray inspection
• Visual inspection
• In-circuit testing (ICT)
• Flying probe testing
• Functional testing

Each method answers a different question.

AOI can identify problems such as missing components, incorrect placement, solder bridges, and visible solder defects. However, it cannot confirm the quality of hidden solder connections.

Similarly, a functional test can confirm whether the product operates correctly, but it may not explain whether a weak solder joint, poor thermal profile, or mechanical issue caused the failure.

A strong inspection strategy connects each possible failure mode with the right verification method.

Before production starts, teams should define:

• Which defects must be detected
• Which inspection method will be used
• What acceptance criteria apply
• What happens when a defect is found

This approach creates a feedback loop where inspection improves the process instead of simply identifying failed boards at the end.

Cost Depends on the Entire Assembly Process

When comparing hand soldering and automated soldering, the lowest initial quote is not always the lowest-cost option.

The real cost includes much more than soldering labor.

Factors that affect total manufacturing cost include:

• Setup time
• Stencil or tooling requirements
• Programming cost
• Inspection requirements
• Rework frequency
• Production yield
• Engineering support
• Future design changes

For a small prototype run, automated soldering may introduce unnecessary setup costs. Creating a stencil, programming equipment, and preparing fixtures may not make economic sense if only a few boards are required.

On the other hand, continuing manual soldering for a product that has entered regular production can create hidden costs. Increased labor time, inconsistent results, and additional inspection effort may eventually exceed the cost of automation.

The right question is not:

“Which process is cheaper?”

The better question is:

“Which process provides the lowest total risk and cost over the expected product lifecycle?”

This is especially important for companies moving from prototype validation into commercial production. The manufacturing method should support future demand rather than only solving the immediate build.

What to Discuss With Your Manufacturing Partner

Many production problems begin because the soldering process was never clearly discussed before the order was released.

A complete manufacturing discussion should include more than quantity and price. The supplier should understand the product requirements, component mix, inspection expectations, and long-term production plan.

Important information includes:

• BOM and approved alternatives
• PCB fabrication files
• Assembly drawings
• Component placement data
• Soldering requirements
• Testing requirements
• Workmanship standards
• Expected production volume

When the soldering route is unclear, different manufacturers may make different assumptions. One supplier may use fixtures, another may rely on manual operations, and another may suggest a different soldering sequence.

Those differences can affect quality, cost, and delivery time.

A good manufacturing partner should explain why a specific process fits the design rather than simply selecting a method based on order quantity.

Pilot Builds Reveal Problems Before Mass Production

A pilot build is one of the most valuable opportunities to evaluate whether the selected soldering method actually works.

During a pilot run, teams should review more than whether the boards power on.

Important observations include:

• Solder joint appearance
• Hidden joint quality
• Rework frequency
• Thermal impact on components
• Production cycle time
• Operator feedback
• Inspection results

A board that requires repeated manual touch-up during a pilot build may indicate a deeper issue.

The problem could come from:

• PCB layout limitations
• Component selection
• Incorrect process settings
• Fixture design
• Soldering sequence

Simply adding more rework instructions may solve a short-term issue, but it does not create a stable manufacturing process.

The goal of a pilot build is to confirm that the process can consistently produce acceptable boards, not just produce a few successful samples.

What Engineering Should Provide Before Production Release

Manufacturing teams need more than Gerber files and a BOM.

A successful handoff should communicate the original engineering intent.

The production package should include:

• Latest PCB revision
• Updated BOM
• Assembly drawings
• Component placement files
• Test requirements
• Inspection criteria
• Rework guidelines
• Known design risks

This information helps prevent problems when a project changes suppliers, moves to another production line, or enters a new manufacturing stage.

For example, changing a component package may affect soldering conditions. Updating a copper area may influence thermal behavior. Moving a connector may change inspection access.

Without proper documentation, manufacturing teams must rebuild this knowledge through trial and error.

A controlled handoff keeps important decisions visible throughout the product lifecycle.

---

Avoid Oversimplifying Soldering Quality

Soldering discussions often become too focused on appearance.

A shiny solder joint does not automatically mean a reliable connection. A board that passes visual inspection does not guarantee long-term field performance.

Quality decisions should always be connected to measurable evidence.

For example:

• Visual inspection confirms external appearance
• X-ray confirms hidden solder conditions
• Electrical testing verifies circuit function
• Process records show whether manufacturing conditions were controlled

No single inspection method can prove everything.

The same principle applies when recommending a soldering method. There is no universal answer that works for every PCB.

The correct choice depends on:

• Component technology
• Board complexity
• Production volume
• Reliability requirements
• Available inspection methods
• Product lifecycle

A good manufacturing decision explains why a process fits the specific product instead of claiming that one method is always superior.

---

Final Thoughts

Hand soldering and automated soldering are not competing technologies where one replaces the other. Both remain important parts of PCB manufacturing.

Hand soldering provides flexibility during prototypes, engineering changes, and special operations. Automated soldering provides repeatability and process control for stable production.

The best results come from matching the soldering method with the actual requirements of the board.

A reliable PCB assembly process is built around three questions:

• Can the process create consistent solder joints?
• Can defects be detected before shipment?
• Can the process remain stable when production requirements change?

When those questions are answered early, soldering becomes a controlled manufacturing decision instead of a problem discovered after production begins.

---

FAQ

Q1: Is hand soldering still used in modern PCB manufacturing?

A: Yes. Hand soldering is still widely used for prototypes, engineering changes, repairs, and selected low-volume operations where flexibility is more important than automation.

Q2: Is automated soldering always better than hand soldering?

A: No. Automated soldering improves repeatability and production efficiency, but it requires suitable PCB design, equipment setup, and production volume to justify the investment.

Q3: Which soldering method is better for PCB prototypes?

A: It depends on the prototype purpose. Early development boards may benefit from hand soldering because changes are frequent. Prototypes intended to represent final production may use automated assembly to validate the manufacturing process.

Q4: Can hand soldering be used for production quantities?

A: It can, especially for special components or limited-volume products. However, production quantities should be evaluated carefully because manual operations may increase variation and labor cost.

Q5: What are common hand soldering defects?

A: Common issues include poor wetting, insufficient solder, solder bridges, excessive heating, damaged components, and inconsistent solder joints.

Q6: What information should be provided before PCB assembly begins?

A: A complete package should include PCB files, BOM, assembly drawings, component placement data, testing requirements, and any specific workmanship criteria.

Q7: How does PCB design affect soldering quality?

A: PCB design affects solder paste printing, component placement, thermal behavior, inspection access, and rework capability. Manufacturing considerations should be reviewed before production release.
